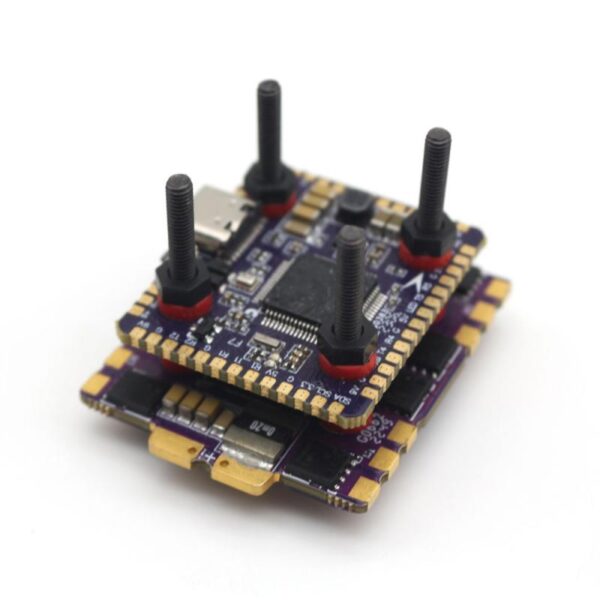

Flycolor Raptor Mini Stack 60A F7 TR20 ₹10,770.00
Back to products

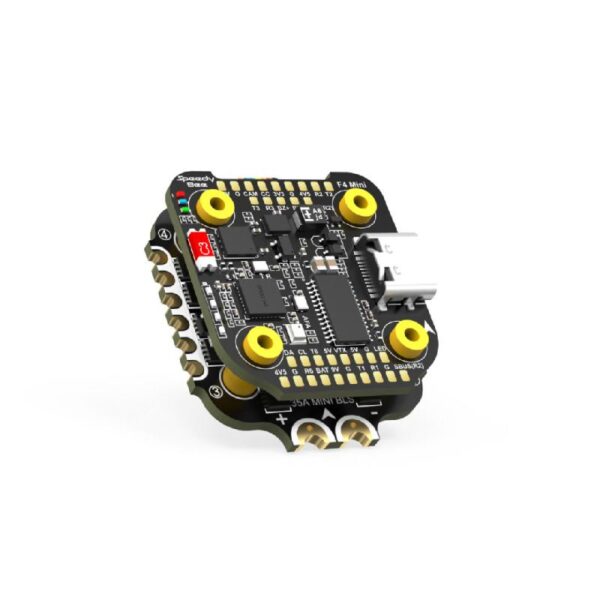

SPEEDYBEE F405 MINI BLS 35A 20X20 STACK ₹5,008.00
Click to enlarge

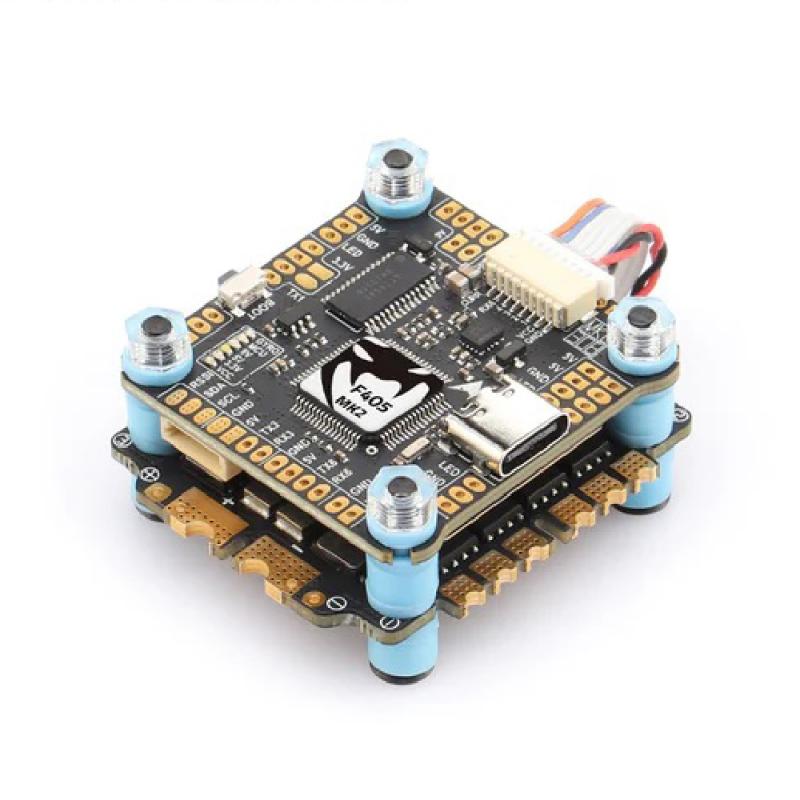

DIATONE Mamba F405MK2 V2 F55 BLS STACK

Try Fpv Shopping Event

Hurry and get discount up to 5%

Sale_coupon_15

₹6,761.00

Compare
Add to wishlist
12 People watching this product now!
  • Pick up from the Try Fpv Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

FC Specification

  • MAMBA F405MK2 V2
  • MCU: 168MHz STM32F405
  • GYRO: MPU6000
  • Target：FURYF4OSD
  • OSD: Yes
  • Blacbox: 16M Flash Memory
  • Barometer: No
  • Uarts: 3 Set
  • I2C: Yes
  • F.Port: No
  • RSSI: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 4 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED
  • AIR UNIT Port: Yes
  • WIFI: No
  • VTX Switch: No
  • Receiver Protection: Yes
  • BEC  Protection: Yes
  • TVS Protection: Yes
  • BEC:3.3V 0.5A&  5V 2A& 9V 2A
  • Input voltage:  4~6S Lipo（16.8~25.2V)
  • Mounting size: 30.5mm/M3

ESC Specification

  • MAMBA F55_BLS
  • Input voltage:  4~6S Lipo（16.8~25.2V)
  • Continue current:50A×4
  • Burst current 65A (10S)
  • BEC: No
  • Target：BLHeli_S CH40
  • SOFT: Dshot300/600
  • TVS Protection: No
  • MOUNTING: 30.5mm/M3

Supply :

  • High Frequency 1000uF/35V ×1
  • 8pin sh1.0  ×2
  • AIR UNIT sh1.0 ×1
  • 12AWG 100mm ×2
  • AMASS Original XT60×1
