Flycolor Raptor AIO 45A F7 HD

Specification and Main feature

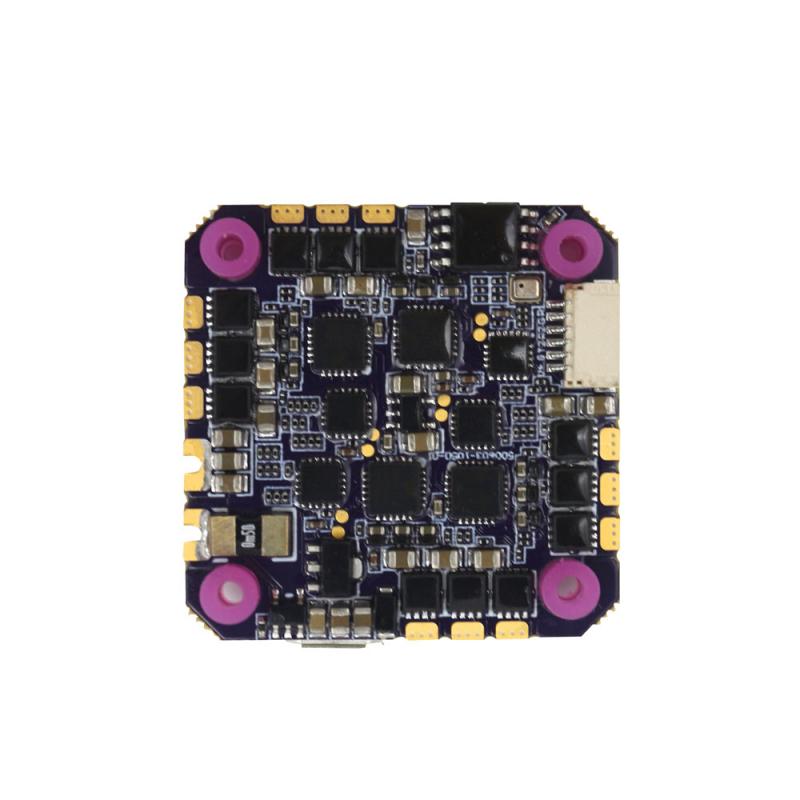

ESC:

• MCU EFM8BB21F16G,pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.
• Default ESC firmware: Bluejay, A-H-30 (Using Bluejay configurator).
• Support for loading firmware: BLHeli-S,A-H-30 (Using BLHeliSuite).
• Dimensions: 34x34mm.
• Install holes: 25.5×25.5mm,26.5×26.5mm,M2.
• Weight: 9.6g.
• 4in1 ESC is highly integrated with F7 Flight Control. Ultra small size, especially suitable for small multi rotor.
• Bluejay firmware supports Dshot300 & Dshot600.
• BLHeli-S code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42 and Multishot , supports all Dshot .
• ESC maximum speed is limited to 500k eRPM (BLHeli-S firmware).
• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling (BLHeli-S firmware).

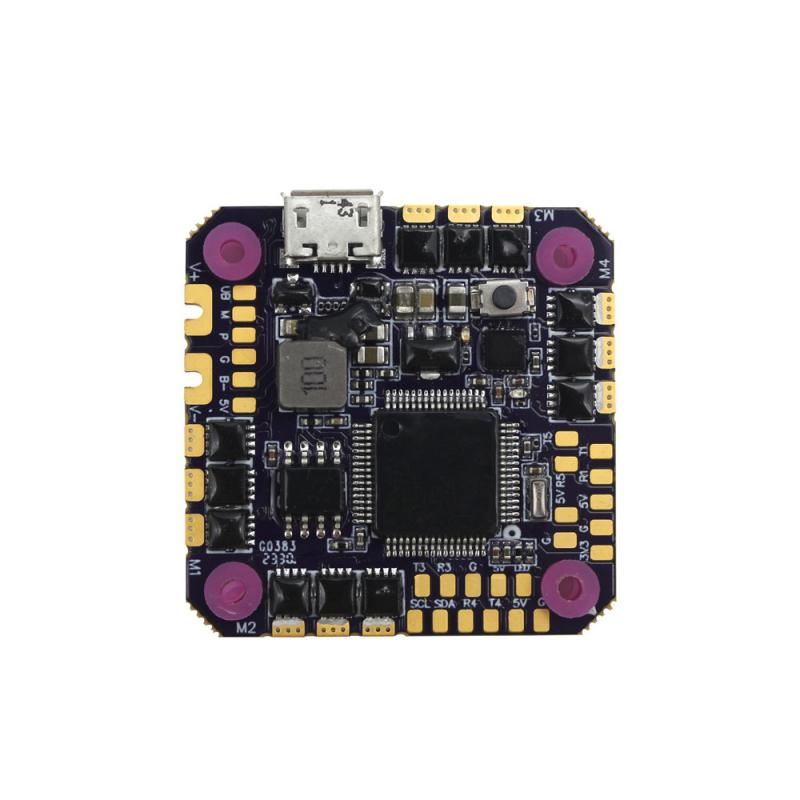

Flight Controller:

• FC firmware: STM32F7X2 (Config.：FLYCOLORF7_AIO_HD).
• MCU: STM32F722.
• Gyro: MPU-6500.
• USB: Micro USB.
• Spare pad for USB, supporting additional soldering of external USB.
• Simplified circuit design, only retaining support for HD image transmission (not supporting analog image transmission).
• Integrated Vbat,3.3V,5V, for HD VTX, receiver, buzzer, LED and other devices.

Part List:

• Raptor AIO HD x 1
• 2mm vibration absorber x4
• Power wire (XT60) x1
• Electrolytic capacitor x1
• Connecting wire(HD TX) x1
