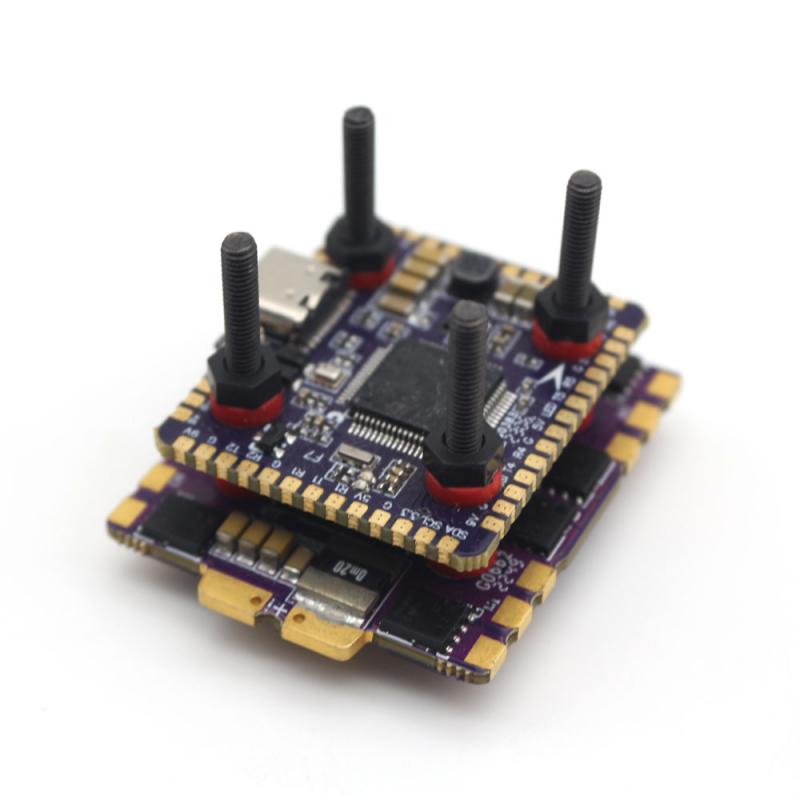

Flycolor Raptor Mini Stack 60A F7 TR20

ESC Main Features

• MCU STM32G0 ,ARM 32-bit Cortex MCU, frequency up to 64 MHz.
• ESC firmware: Flycolor_Raptor_5.
• Configurator for ESC Parameter setting and upgrading : BLHeliSuite32.
• Mounting holes: 20x20mm,M3.
• PWM frequency up to 128K.
• MOSFET with high performance and low Rds , not afraid of large current, more suitable for rapid flight
• Miniaturized and lightweight design, better routing and component layout.
• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
• The code supports regular 1-2ms pulse width input, as well as Oneshot125 , Oneshot42 and *Multishot.
• All Dshot and Proshot signals are supported.

Flight Controller

• Betaflight firmware: STM32F7X2（Config file:FLYCOLORF7MINI）
• Betaflight board: FLYCOLORF7MINI.
• INAV firmware is supported：FLYCOLORF7MINI
• MCU: STM32F722.
• USB: Type C.
• Gyro: MPU-6500 SPI.
• Voltage output: 3.3V/0.1A、5V/3A 、9V/1.5A.
• Dual VTX and dual LED pads for convenient selection nearby.
• Const Curr.: 60A
• Burst Curr.: 70A
• FC BEC: 3.3V5V9V
• Lipo: 3-6S
• Weight: 23G
• Size(mm): 44*36

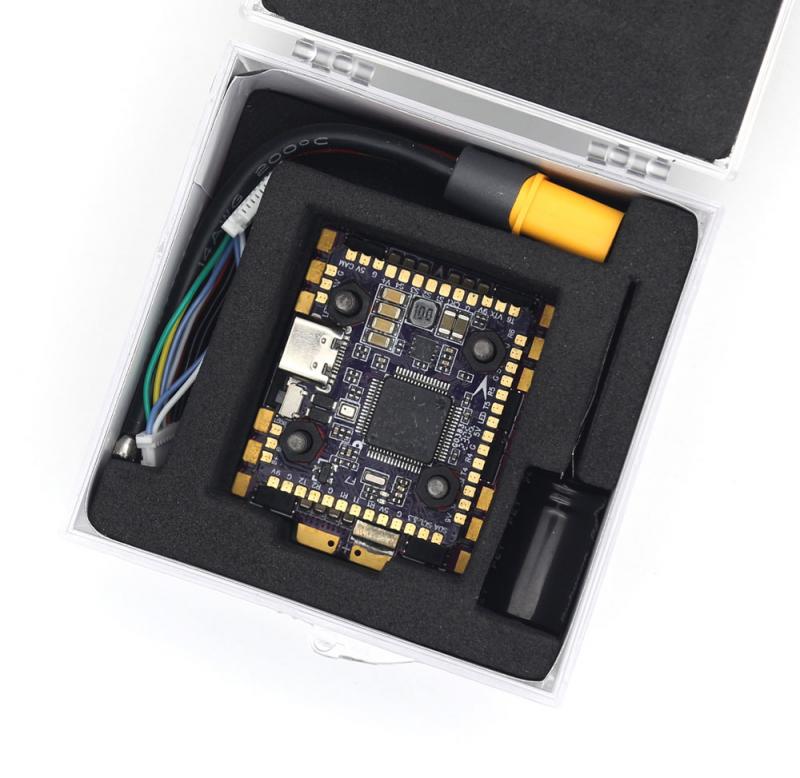

Part List

• Raptor 5 Mini 4in1 ESC x1
• F7 Mini 2 Flight Control x1
• ESC /FC connecting wire x1
• Power wire(XT60) x1
• Electrolytic capacitor x1
• 3mm Mounting Accessories x1set
