HAKRC F4 4530D V2

HAKRC F4530D Flight Controller provides great power all in a 30.5×30.5mm mounting pattern.The control is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!

Try Fpv Shopping Event

Hurry and get discount up to 5%

Sale_coupon_15

3,168.00

20 People watching this product now!
  • Pick up from the Try Fpv Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

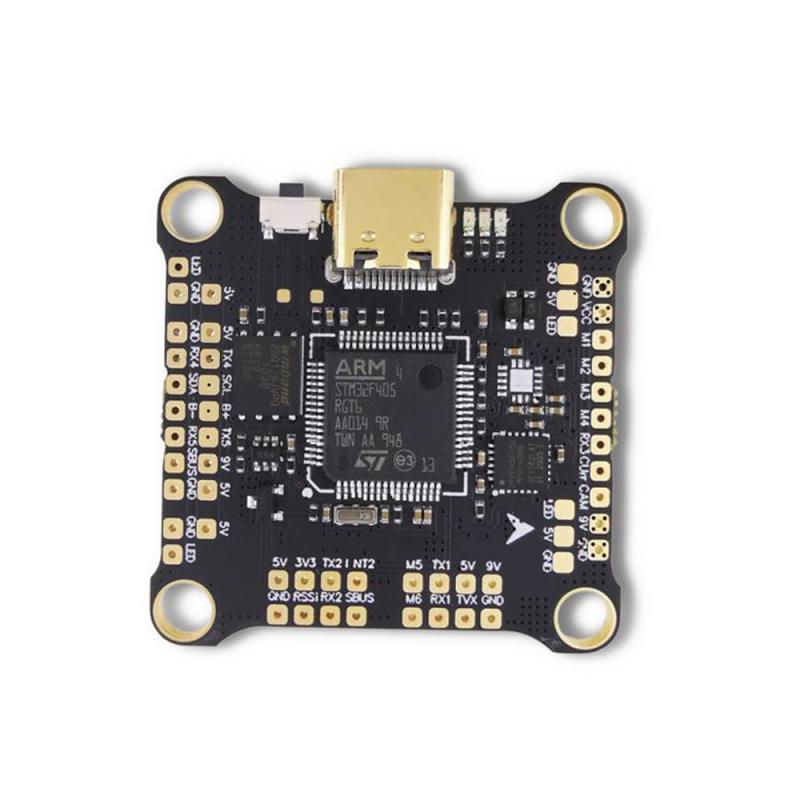

HAKRC F4530D FC

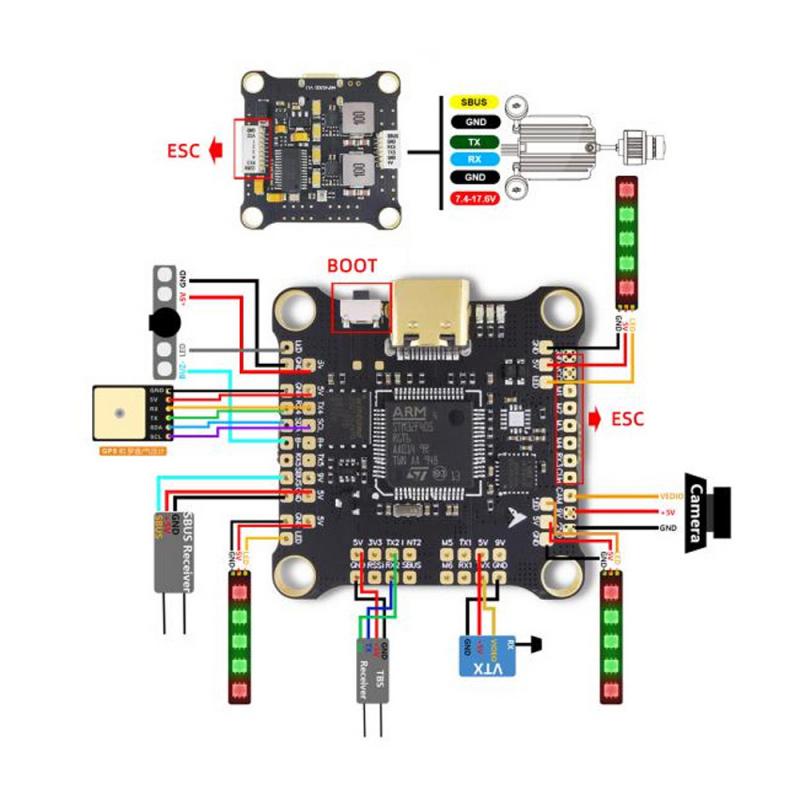

HAKRC F4530D Flight Controller provides great power all in a 30.5×30.5mm mounting pattern.The control is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including Sbus,ELRS, PPM, CRSF, DSMX, iBus, DUMD, etc.

FC Specification

  • Product size: 36x36mm
  • Packing size: Φ62*33mm

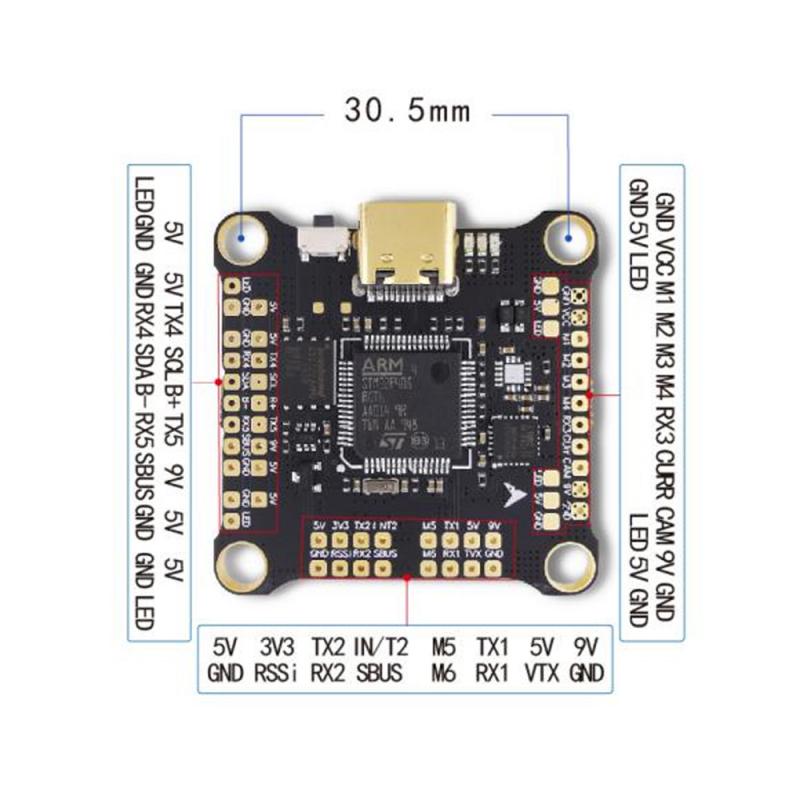

  • Installation hole distance: 30.5×30.5mm φ4mm
  • Weight: 6g
  • Packing weight: 20g
  • MCU: STM32F405RGT6
  • IMU:MPU6500
  • Baro: Infineon DPS310 (I2C2)
  • OSD: AT7456E (SPI2)
  • Blackbox: 16MB
  • B E C:5V/3A ; 9V/2.5A
  • USB interface: TYPE-C
  • Input voltage: 3—6S
  • Firmware: betaflight_4.2.9HAKRCF405D
  • Uart serial port: 5
  • Assistant software:betaflight-configurator
  • DJI digital image transmission:support
