The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.Using industrial grade LDO, high temperature resistance.Using high-quality Japanese Murata capacitors, strong filtering performance
Features
- The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.
- MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.
- Using industrial grade LDO, high temperature resistance.
- Using high-quality Japanese Murata capacitors, strong filtering performance
Specification
- Brand: HAKRC
- Size: 40* 30mm (20x20mm mounting hole)
- Product net weight: 10g

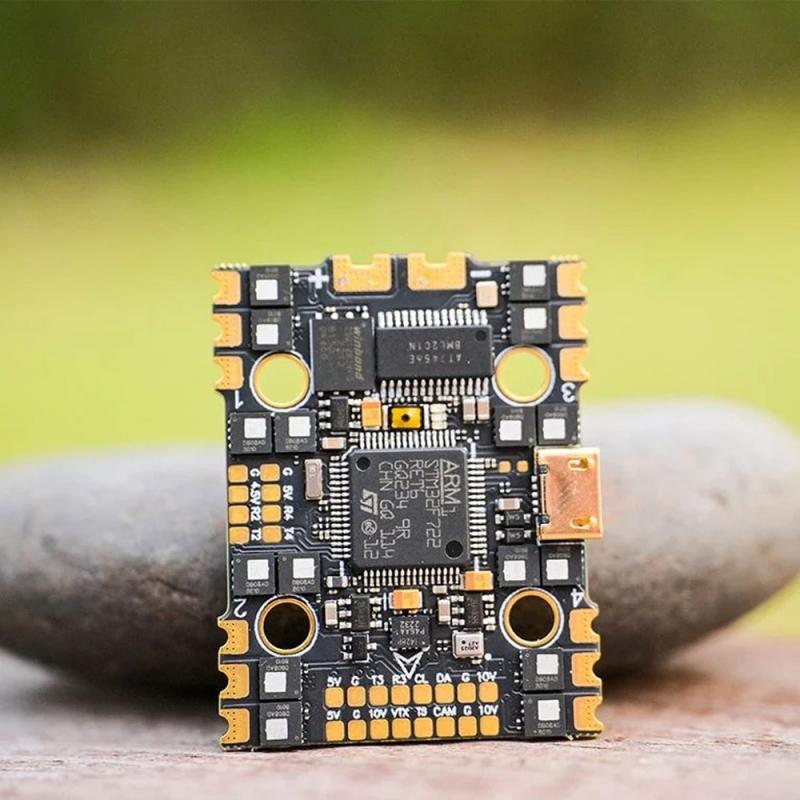

Flight control Parameters
- CPU: STM32F722RET6
- IMU: ICM42688
- OSD: AT7456E
- UART: 5
- Barometer: integrated
- Blackbox: 16MB
- BEC: 5V/3A, 10V/2.5A
- Sensor: Built-in current sensor
- Flight control firmware version: HAKRCF722D
- Receiver: CRSF / Frsky/ Futaba/ Flysky/
- TBS Crossfire/ DSMX: DSM2 receiver

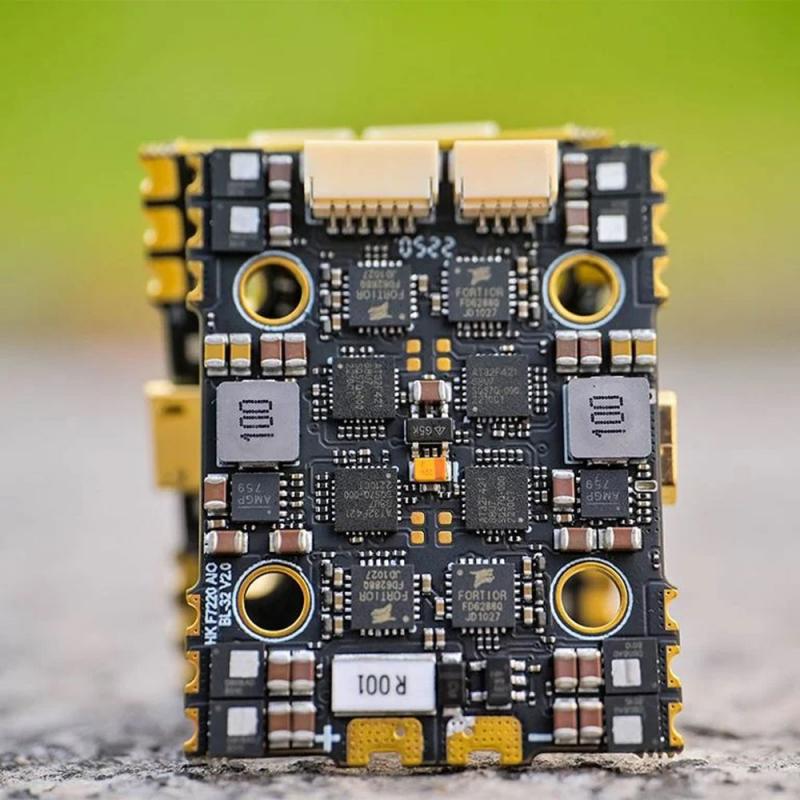

ESC Parameters
- Firmware support: blheli_32
- Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Input voltage: 3S-6S Lipo
- Continuous current: 50A
- Peak current: 60A
- Firmware version: HAKRC_AT4G_Multi_32_9
