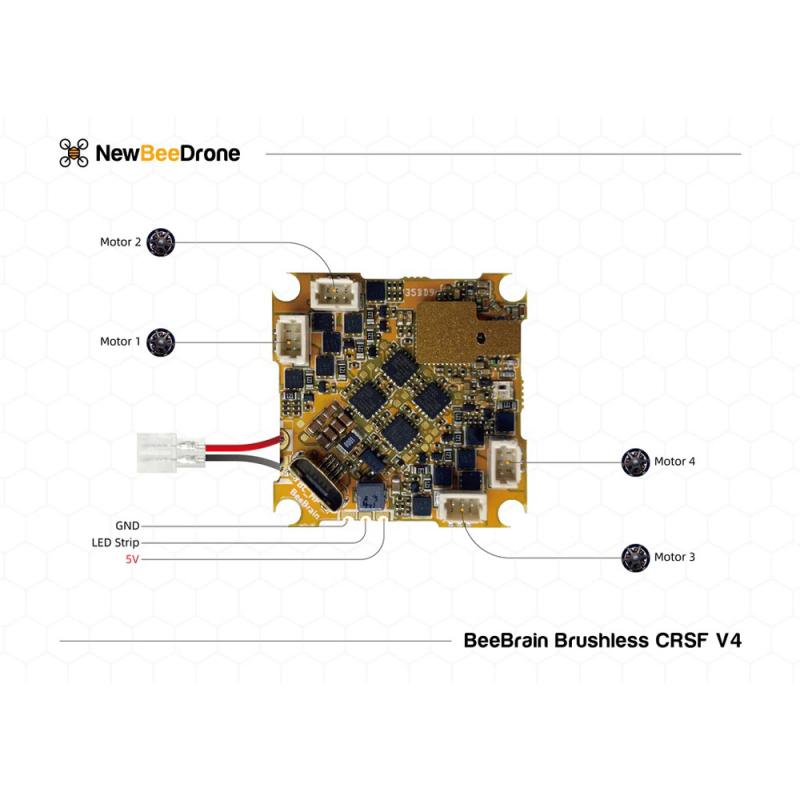

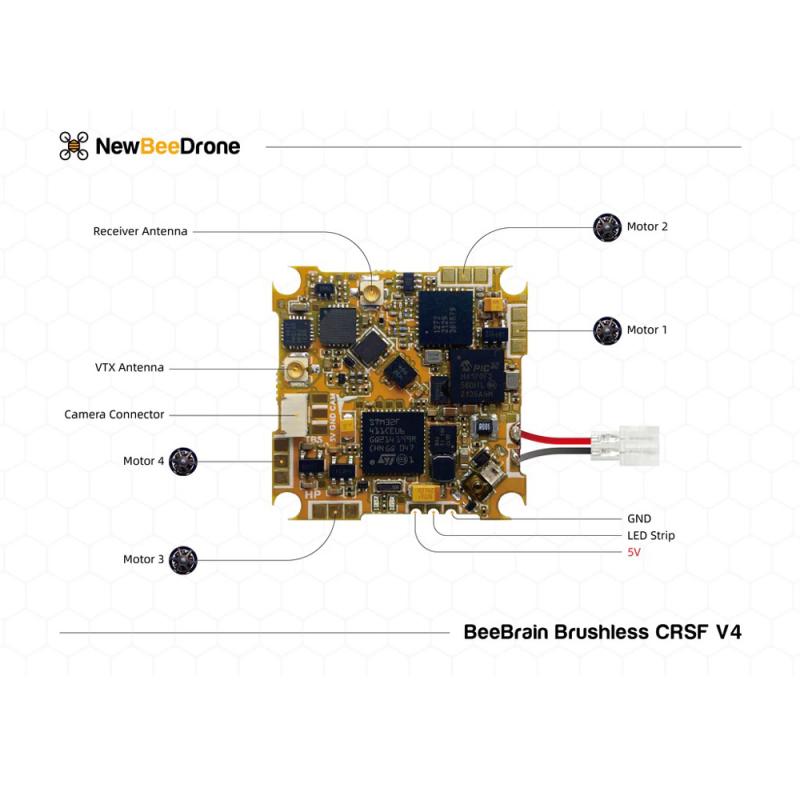

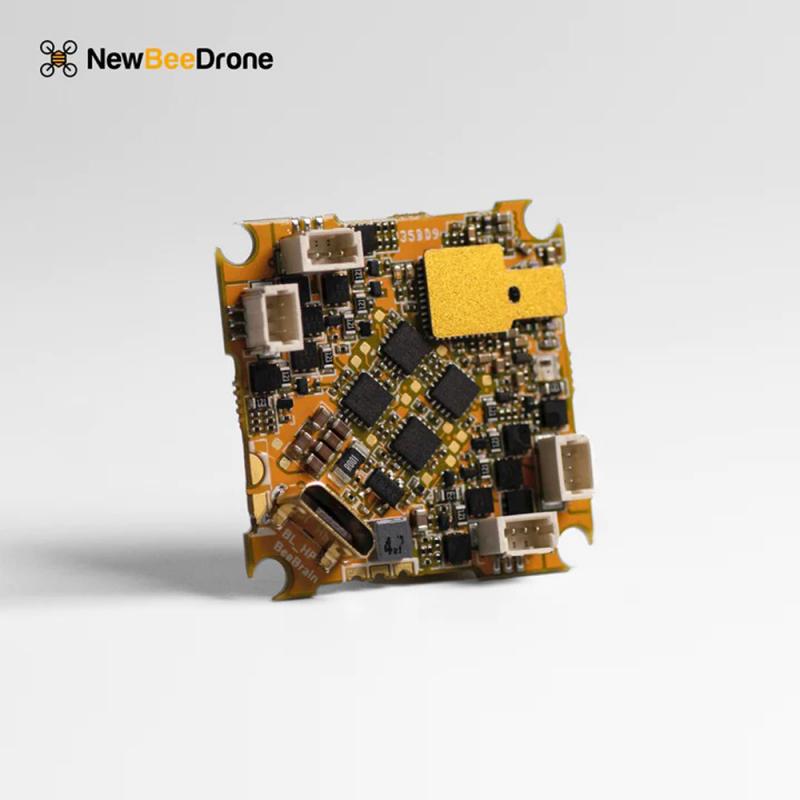

NBD X TBS Beebrain BLV4 AIO Flight Controller Crossfire Blowout

Try Fpv Shopping Event

Hurry and get discount up to 5%

Sale_coupon_15

₹7,431.00

Compare
Add to wishlist
10 People watching this product now!
  • Pick up from the Try Fpv Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Specification

  • MCU: STM32F411
  • GYRO：BMI270
  • VTX: Switchable output power from 5mw- 25mw(for Racing) – SmartMAX(SmartMax up to 400mw)  with BeeTX 5.8Ghz Antenna
  • ESC: 12A BLHeliS Pre-Flash with Bluejay 0.18 target: S-H-40 48kHz
  • ESC Connector: JST-1.0 3Pin
  • OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
  • Receiver: Crossfire Nano receiver with MINIMORTAL T ANTENNA
  • Flight Controller Weight: 6.5g(Include antennas and battery connector)
  • Flight Controller Size: Outer dimensions: 29x29x7.6mm
  • Flight Controller Holes: 25.5×25.5mm
  • Battery input: 1-2S (For 2S you will need to set throttle cap at less 50%)
  • Uart2:   Crossfire Nano receiver
  • Power Connector: NBD-PH2.0 connector

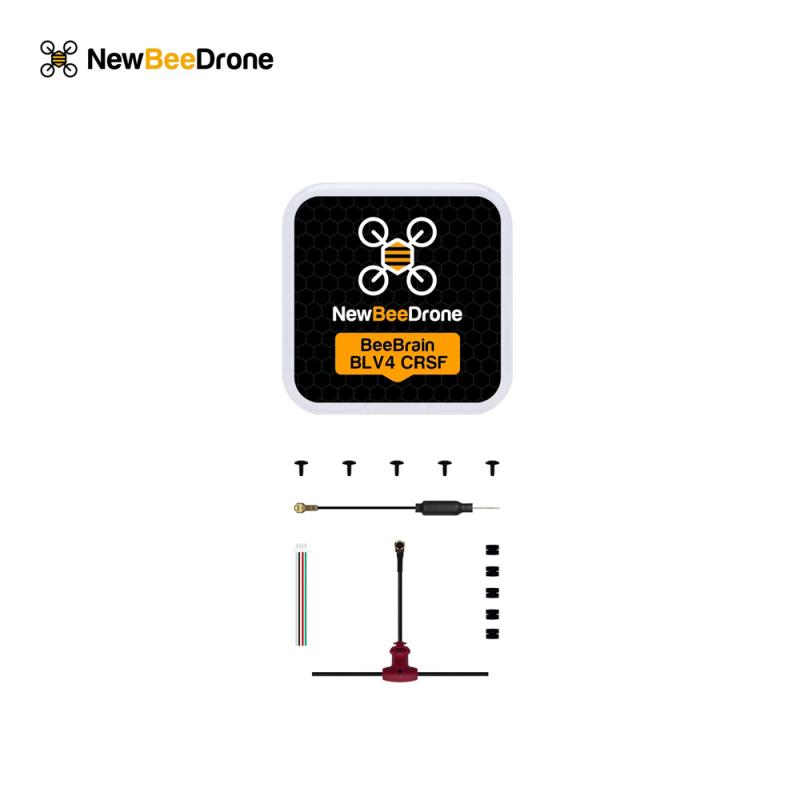

Includes

  • 1 x BeeBrain BLV4 CRSF Flight Controller
  • 4 x Grommet
  • 4 x Screw
  • 1 x MINIMORTAL T Antenna
  • 1 x VTX Antenna
