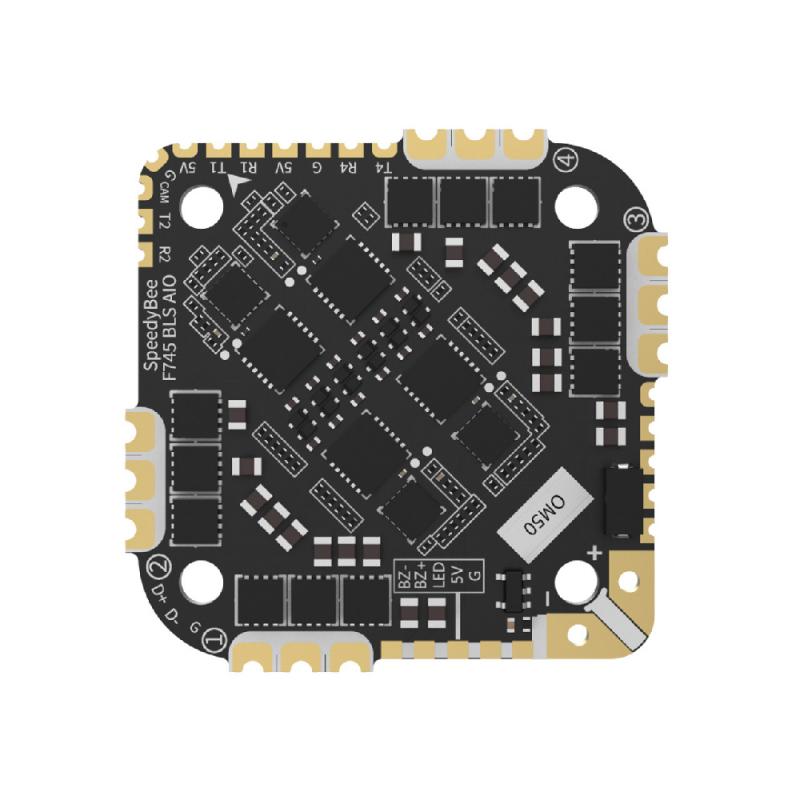

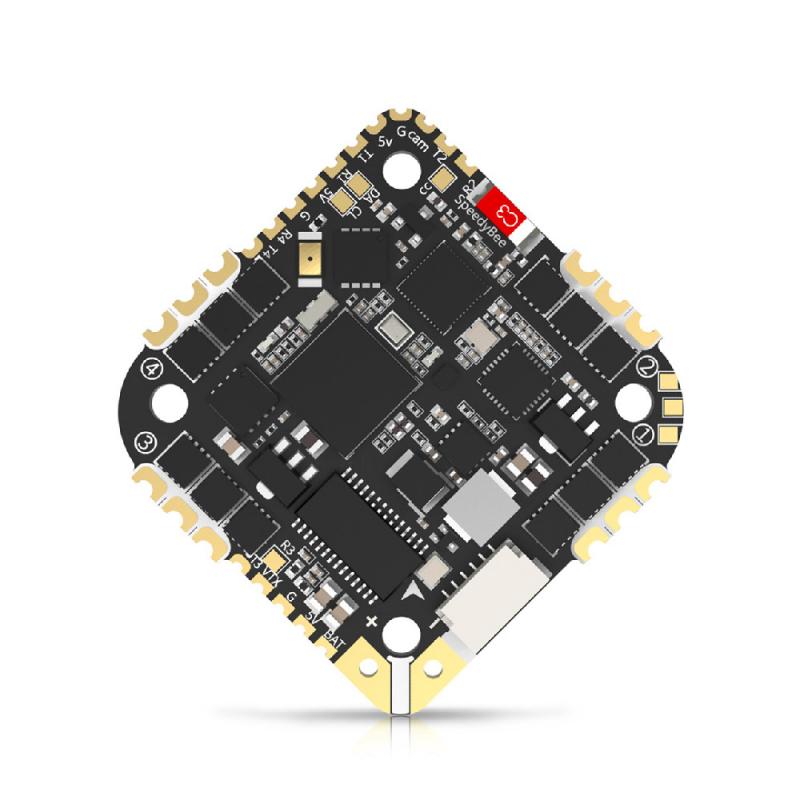

SPEEDYBEE F745 35A BLS 25.5X25.5 AIO

Overview

• Product Name: SpeedyBee F745 35A BLS AIO
• Power Input: 3S – 6S Lipo
• Mounting: 25.5 x 25.5mm, 3mm hole diameter
• Dimension: 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5″ or above
• Weight: 10.1g

FC Specification

• MCU: STM32F745
• IMU(Gyro): MPU6000
• USB Connection: Need to solder a USB TYPE-C module to D+,D-,GND pads.
• Barometer: BMP280
• OSD: Supported
• BLE Bluetooth: Supported. Used for parameter configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip
• Flash FC Firmware Wirelessly: Supported
• Download/Analyze Blackbox: Supported
• DJI Air Unit 6-pin Connector: Built-in.
• Flash(for BlackBox): 8MB
• Current Sensor: Supported. Scale=256
• BetaFlight Camera Control Pad: Yes(CC pad)
• 5V Output: 4 groups of 5V output. The total current load is 2.5A.
• 9V Output: None
• ESC Signal Pads: M1 – M4
• UART: Full UART * 4(UART1, UART2, UART3,UART4)
• ESC Telemetry UART: None
• I2C: Supported.
• LED Pad: Used for WS2812 LED
• Buzzer: BZ+ and BZ- pad used for 5V Buzzer
• BOOT Button: Used to enter DFU mode
• RSSI Input: Not supported
• SmartPort: Not Supported
• Supported Flight Controller: BetaFlight(Default)
• Firmware Target Name: SPEEDYBEE F745AIO

ESC Specification

• Power Input: 3-6S LiPo
• Continuous Current: 35A * 4
• Burst Current: 45A(5seconds)
• ESC Protocol: DSHOT300/600
• Power Output: VBAT
• Current Sensor: Supported(Sacle=256)
• Firmware: BLHeli_S JH40
